產品特色
卓越的條碼讀取性能
不論是紙本或是手機螢幕上的一維及二維條碼,皆可讀取
便利性的設計
內建防刮視窗,不須額外的機構設計
白色補光
白色補光讓條碼更容易讀取
LED準心
免除雷射準心可能對使用者眼睛的影響
產品簡介

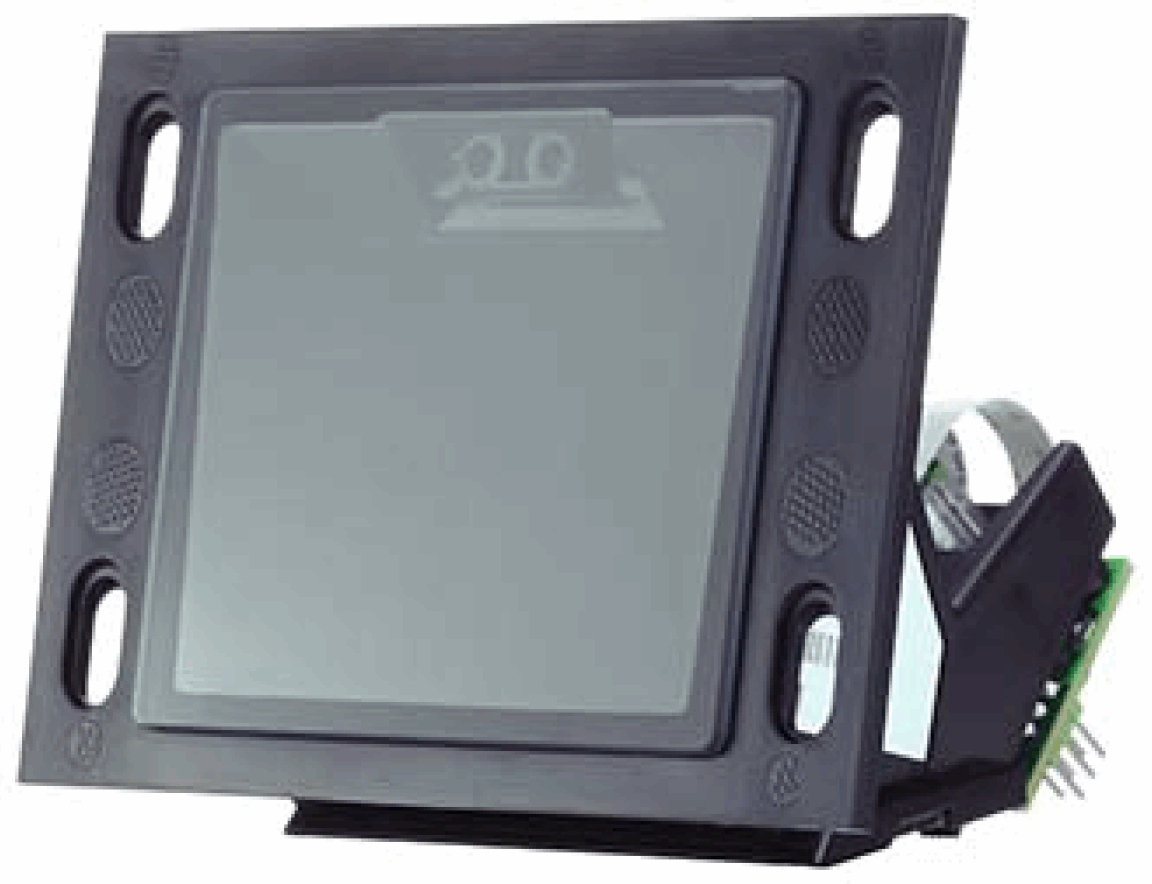

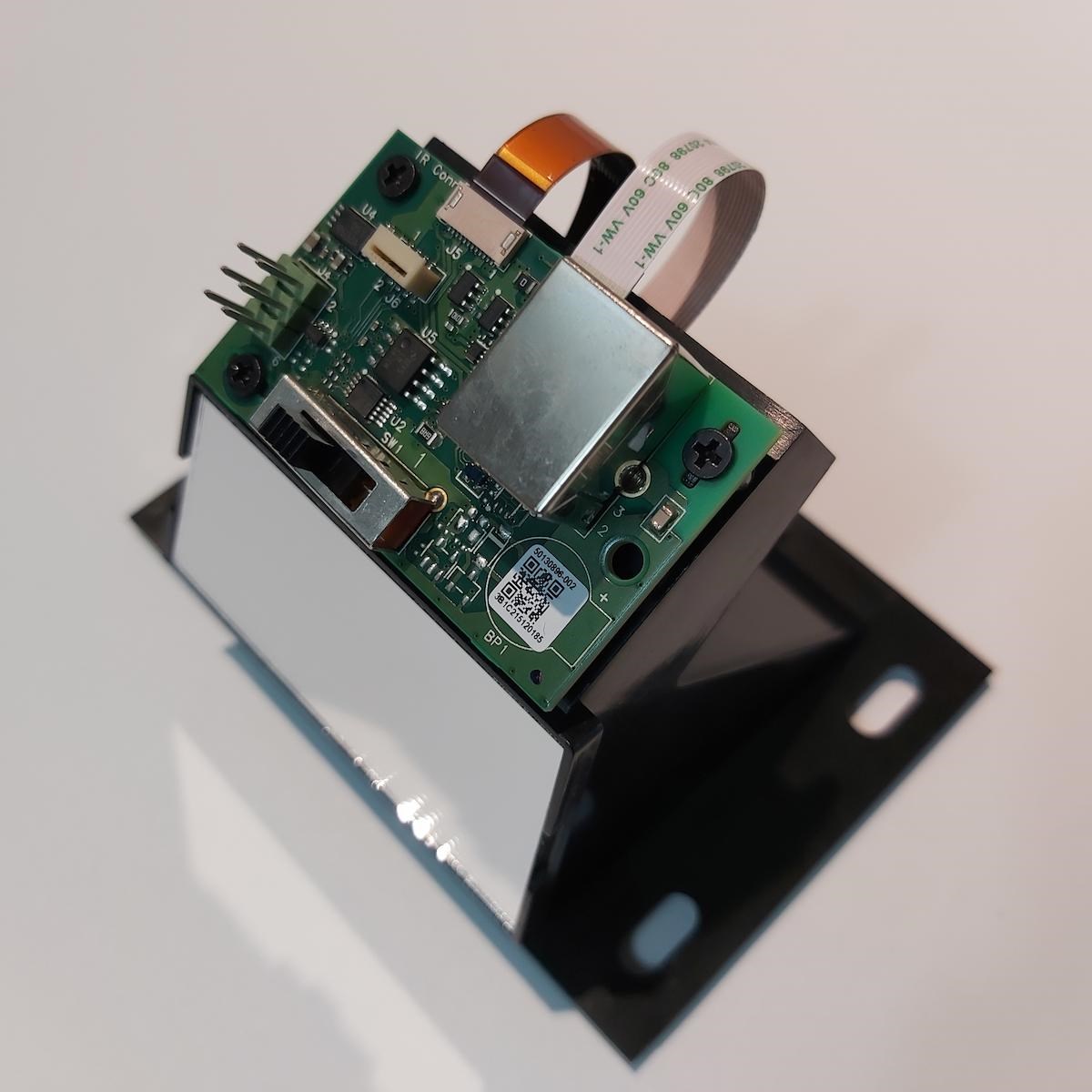

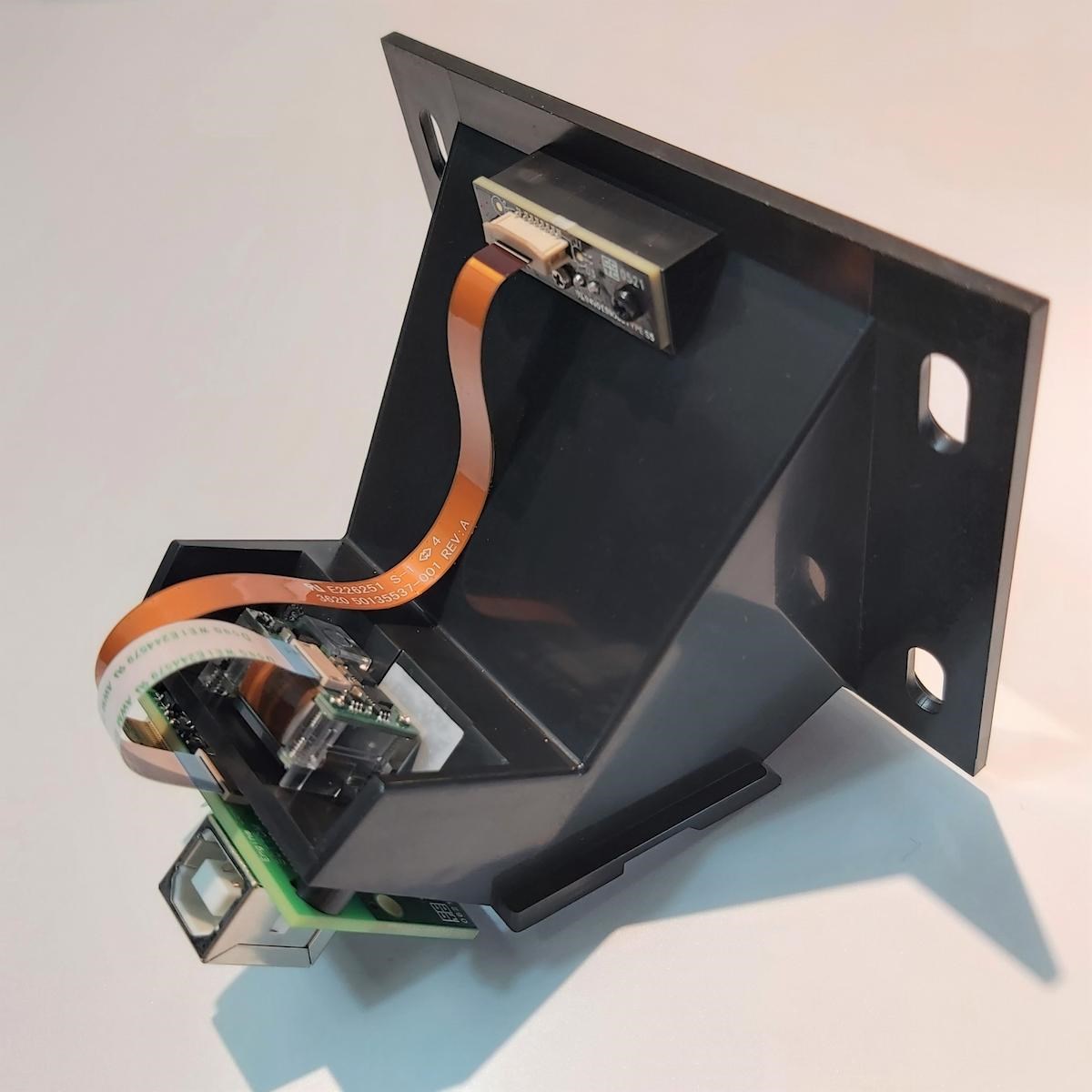

Honeywell掃描器 CF4680 採用耐用且穩定的外型設計,加上可讀取全系列一維及二維條碼,可迅速的導入產品設計中,節省開發設計所需要的時間。搭配Honeywell先進的解碼技術,CF4680可直接讀取手機螢幕上的條碼,在Kiosks,自動販賣機,門禁系統,POS…等產品上是您理想的選擇。CF4680使用LED準心而非雷射準心,可以避免在操作自助化設備的時候,有可能對使用者眼睛的傷害。CF4680內建可調式IR感測器,條碼靠近到設定距離內才會啟動條碼閱讀器,節省電量消耗。CF4680內建堅固且防刮的壓克力視窗,客戶不須再額外設計機構保護。
|
MECHANICAL (CF4680) |
|
|
Dimension (L x W x H) |
105 mm x 90.59 mm x 75.07 mm |
|
Weight |
50 g |
|
Interface |
USB-B Connector |
|
PERFORMANCE (CF3680) |
|
|
Sensor |
CMOS, 640 x 480 pixels, Rolling shutter |
|
Field of View |
Horizontal: 37.8° Vertical: 28.8° |
|
Scan Angles |
Tilt: 360°, Pitch: ±45°, Skew: ±65° |
|
Symbol Contrast |
35% minimum print contrast ratio |
|
Distance Selection |
3 position switch: 0 to 10 cm, 0 to 20 cm, 0 to 30 cm |
|
Symbologies |
|
|
Linear |
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar, UPC-A, UPC-E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation |
|
2D |
PDF417, MicroPDF417, GS1 Composite, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) Code |
|
Postal |
Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet |
|
OCR (option) |
OCR-A, OCR-B, E13B(MICR) |
|
ENVIRONMENTAL |
|
|
Operating Temperature |
-10°C to 40°C |
|
Storage Temperature |
-40°C to 60°C |
|
Humidity |
0% to 95% relative humidity, non-condensing |
|
Shock |
18 shocks of 2.5 Kg for 0.4 ms at 23°C |
|
Vibration |
1G acceleration (500 Hz to 2,000 Hz) |
|
Ambient Light |
0 lux to 100,000 lux (total darkness to bright sunlight) |
|
MTTF |
70,000 hours |
