產品特色

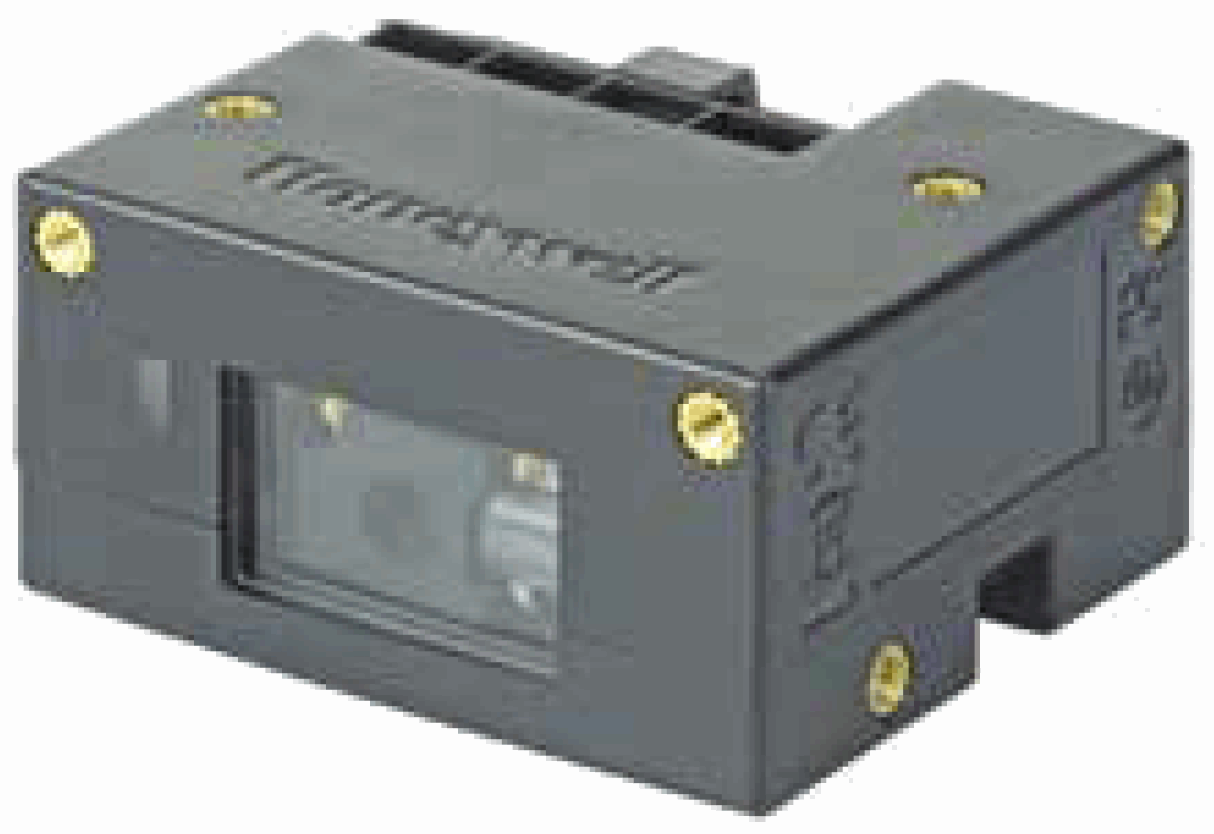

相同外殼 不同引擎
依據客戶需求,有四種解碼引擎可供選擇

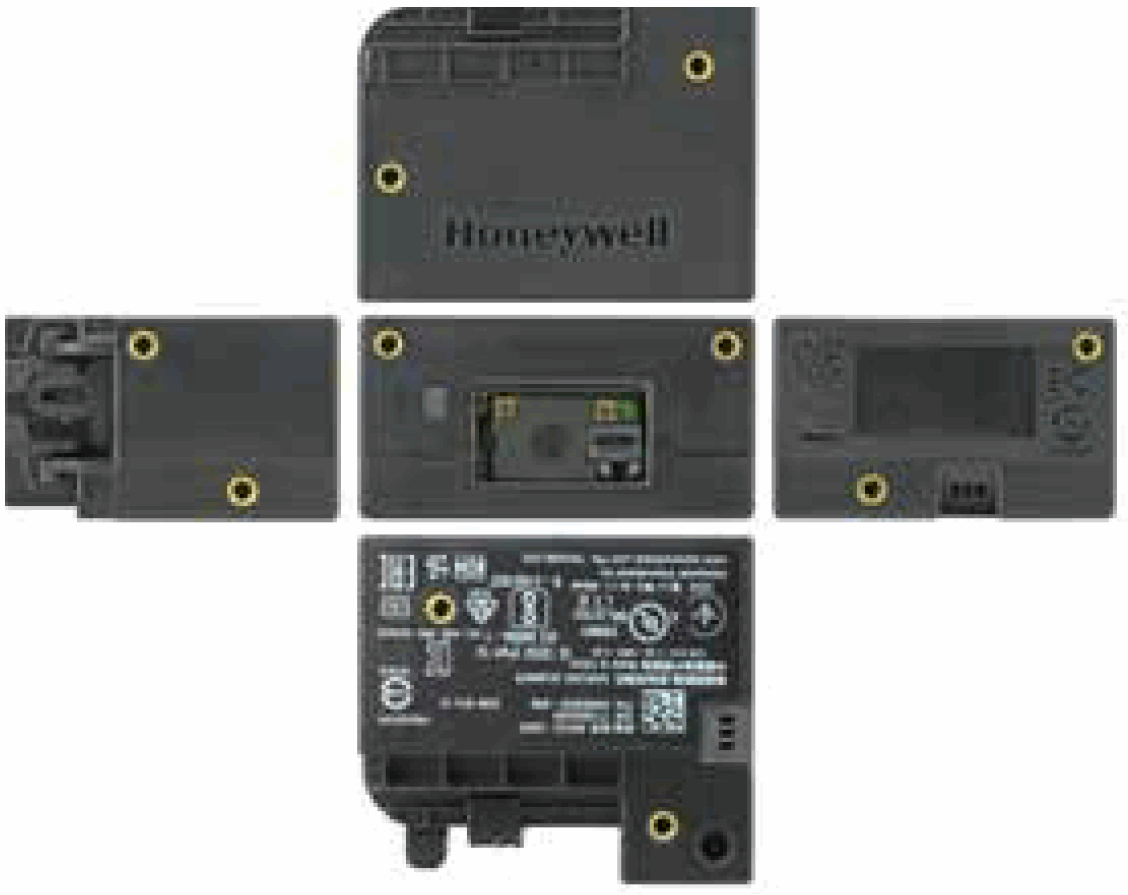

機構設計自由
總共5面10定位螺絲孔,可符合各種機構設計
Micro USB Cable
使用Micro USB connector,不須額外開發連接線

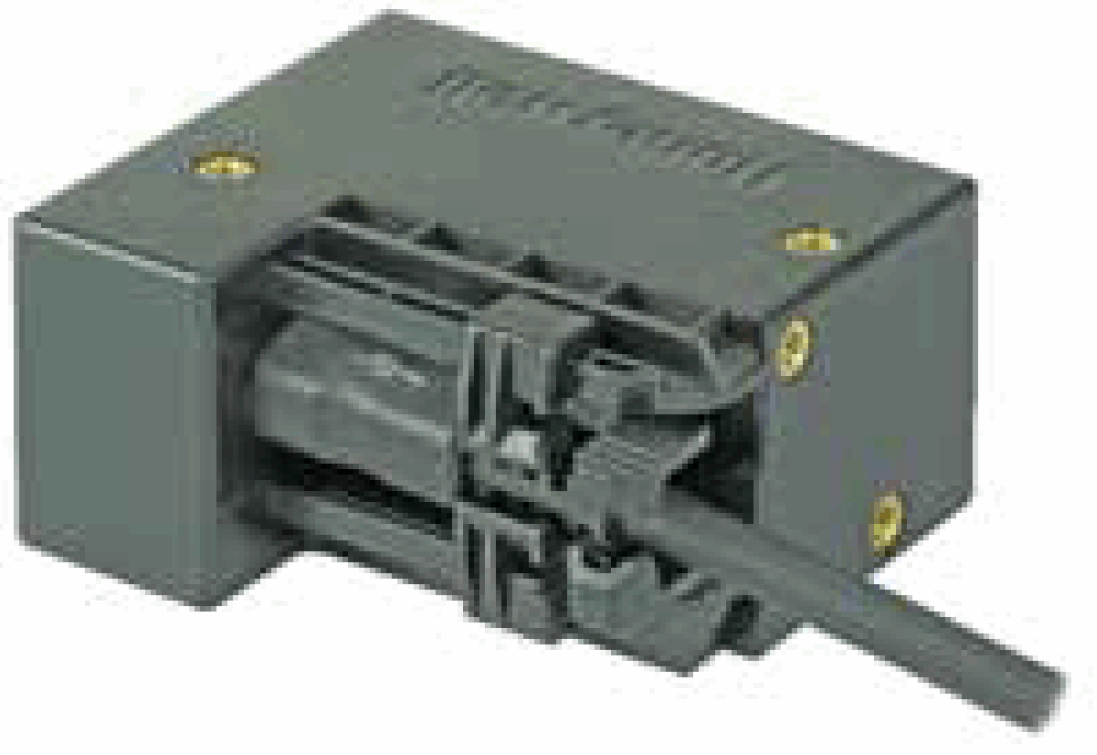

獨特線夾設計
獨特線夾設計,讓連接線不易鬆脫
豐富條碼資料庫
可支援一維條碼,二維條碼,OCR條碼
產品簡介
Honeywell條碼模組 CM Series 依據需求可選擇四種條碼引擎(CM3680SR/CM5680SR/CM5680WA/CM2180MP),可自由搭配及升級。CM Sereis可支援所有一維條碼,二維條碼及PDF417,甚至部分型號可支援OCR條碼。CM Series可輕鬆讀取模糊的條碼,甚至是手機螢幕上的票劵條碼,包括兌換券.會員卡以及手機支付系統。CM Series適用於KIOSK和POS等自助式設備上,加上Honeywell零誤碼率的演算法技術,在消費付款的應用上,是客戶第一的選擇。
|
PERFORMANCE |
||||
|
Characteristic |
CM3680SR-BW0 |
CM5680SR-BR0 |
CM5680WA-BR0 |
CM2180MP-BR0 |
|
Standard Performance |
Enhanced Performance |
Specialized Performance |
Specialized Performance |
|
|
Image Size |
640 x 480 pixels |
844 x 640 pixels |
1280 x 800 pixels |
|
|
Motion Tolerance |
100 mm/s |
1270 mm/s |
100 mm/s |
|
|
Scan Angle |
Horizontal: 38° |
Horizontal: 42.4° |
Horizontal: 68° |
Horizontal: 48° |
|

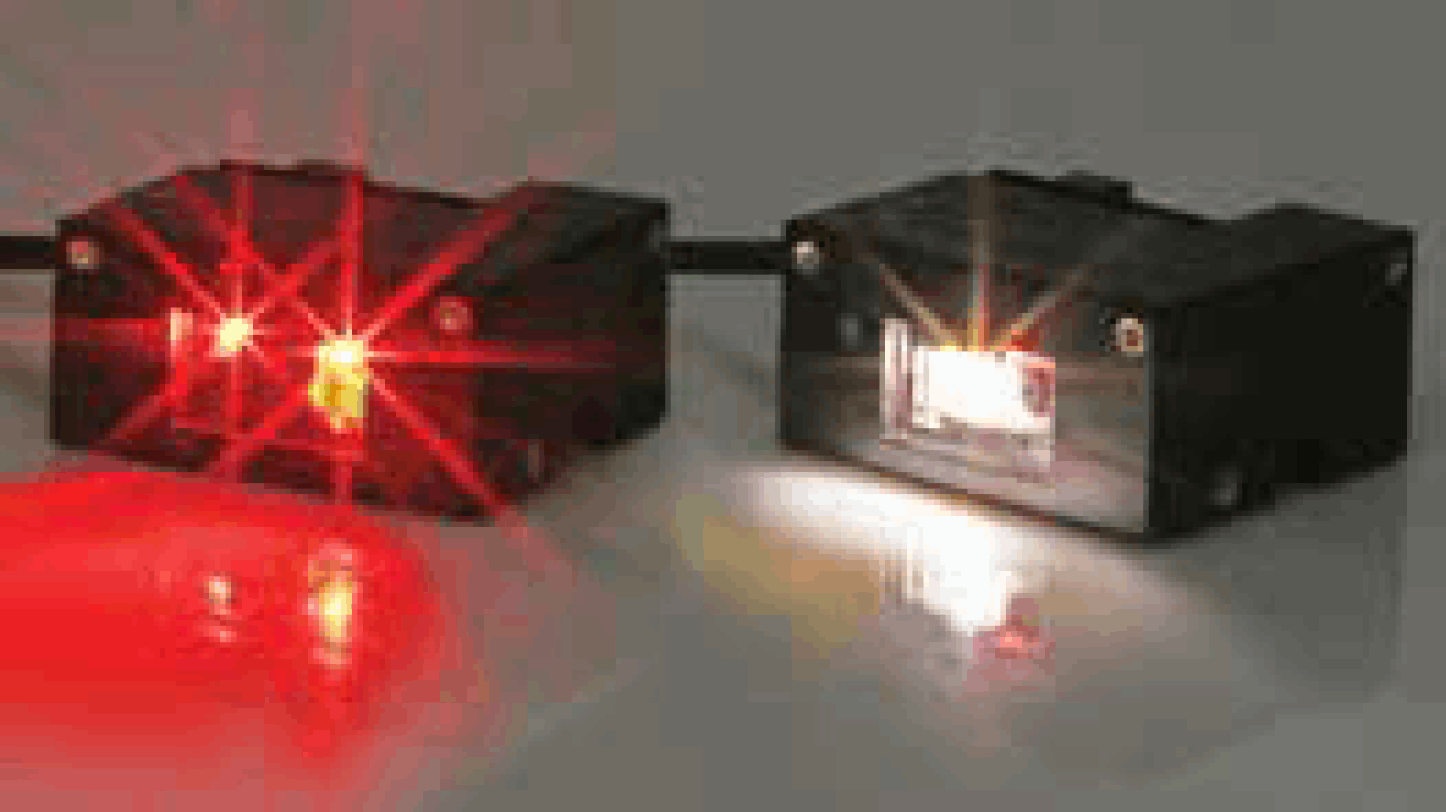

Illumination |
White LED |
White LED / Red LED |
Red LED |
Red LED |
|
Aimer |
Red LED |
Green LED |
No Aimer |
|
|
SYMBOLOGIES |
||||
|
Linear |
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar, UPC-A, UPC-E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation |
|||
|
2D |
Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) Code |
|||
|
Postal |
Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet |
|||
|
OCR (optional) |
OCR-A, OCR-B, MICR E13B |
|||
|
MECHANICAL |
||||
|

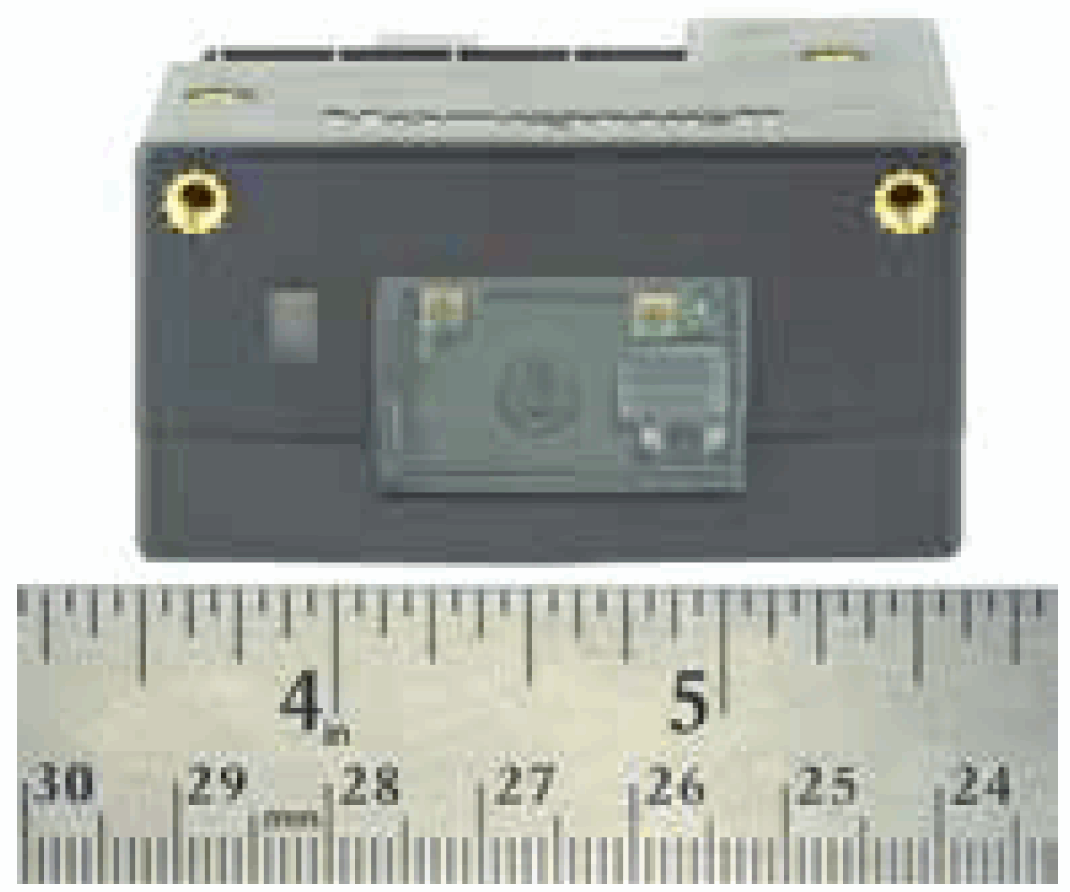

Dimensions (L x W x H) |
55mm x 48mm x 28mm |
|||
|
Weight |
50g |
54g |
54g |
52g |
|
Termination |
Micro USB Connector |
|||
|
ENVIRONMENTAL |
||||
|
Operating Temperature |
-20°C to 50°C |
-30°C to 60°C |
||
|
Storage Temperature |
-40°C to 70°C |
|||
|
Hunidity |
5% to 95% RH, non-condensing |
|||
|
Drops |
10 drops at 1.5m to concrete |
|||
|
Vibration |
Random Vibration, 5G from 22Hz to 300Hz, 2 hour, 3 axes |
|||
|
Light Level |
0 lux to 100,000 lux (total darkness to bright sunlight) |
|||
|
MTBF |
100,000 hours |
|||
|
Sealing |
IP 54 |
|||
