Honeywell 條碼機 產品特色
柔和照明
暖白LED提供卓越的照明性能,並提供更柔和的光線,徹底消除對人眼的刺激和傷害風險
體積靈活小巧
可以方便嵌入到各種設備中
廣角掃描
超大的視場角度,可以更大範圍的輕鬆掃碼
卓越的解碼性能
快速解碼所有一維及二維條碼,尤其在高反光的手機屏幕上的條碼
豐富條碼資料庫
可支援全系列一維條碼,二維條碼
產品簡介

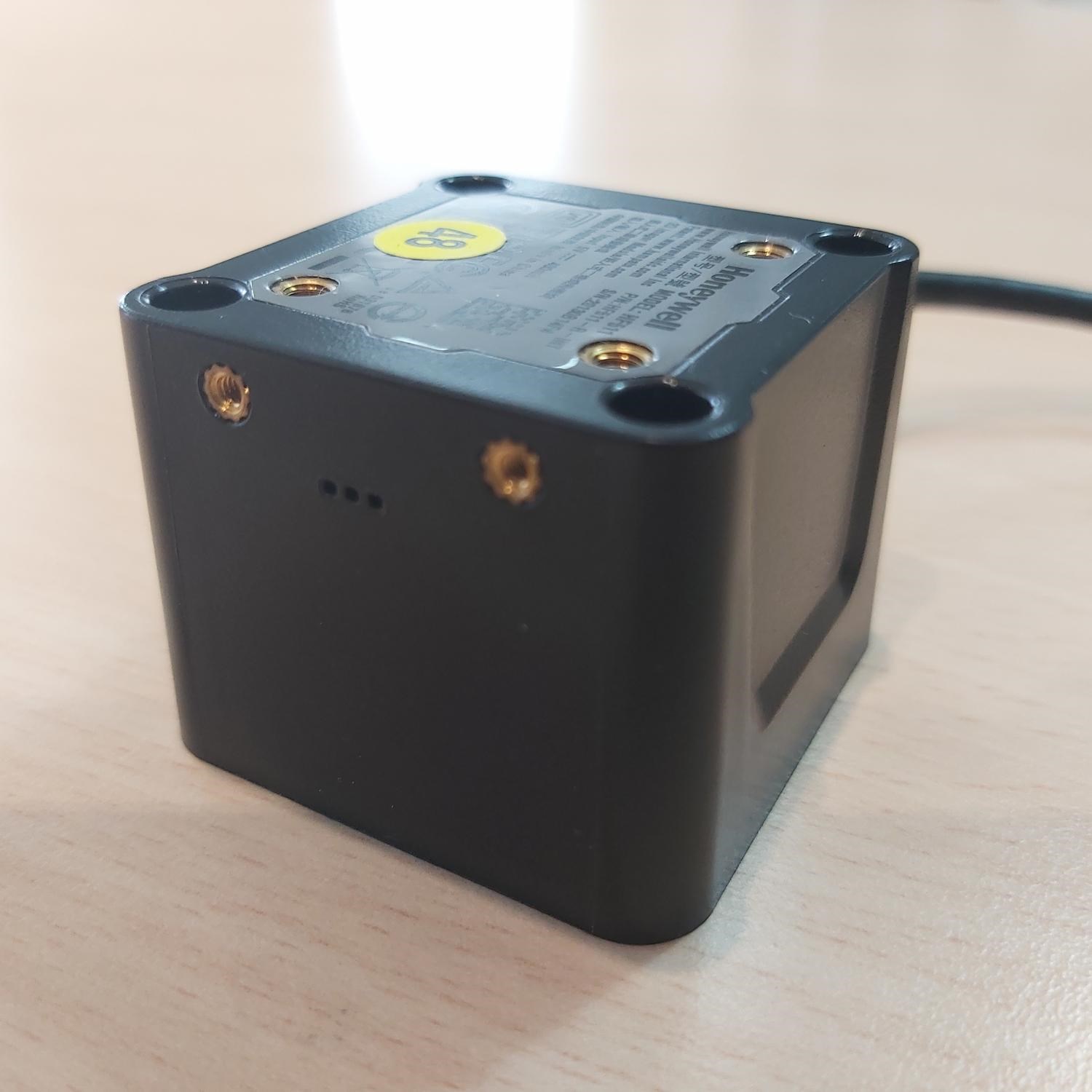

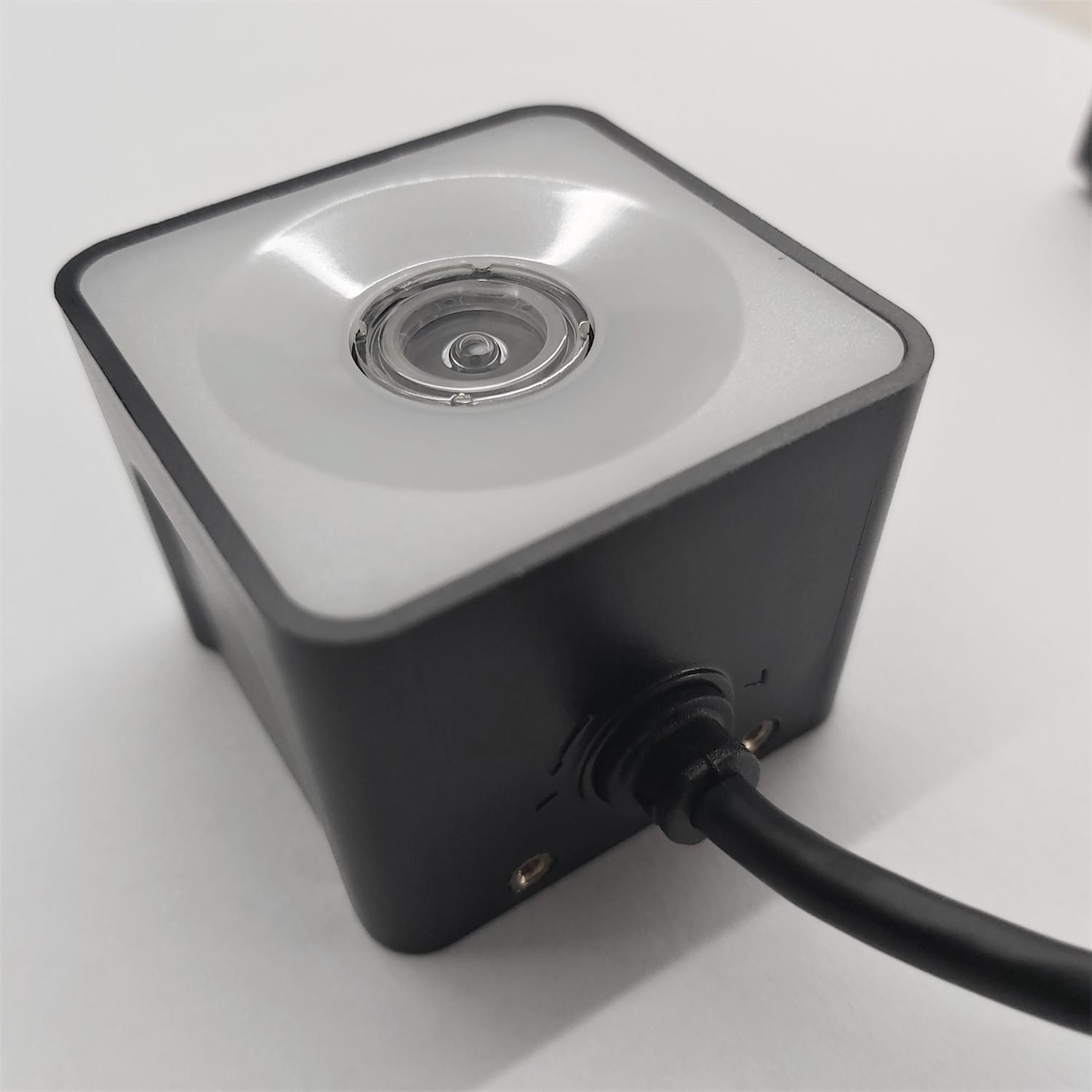

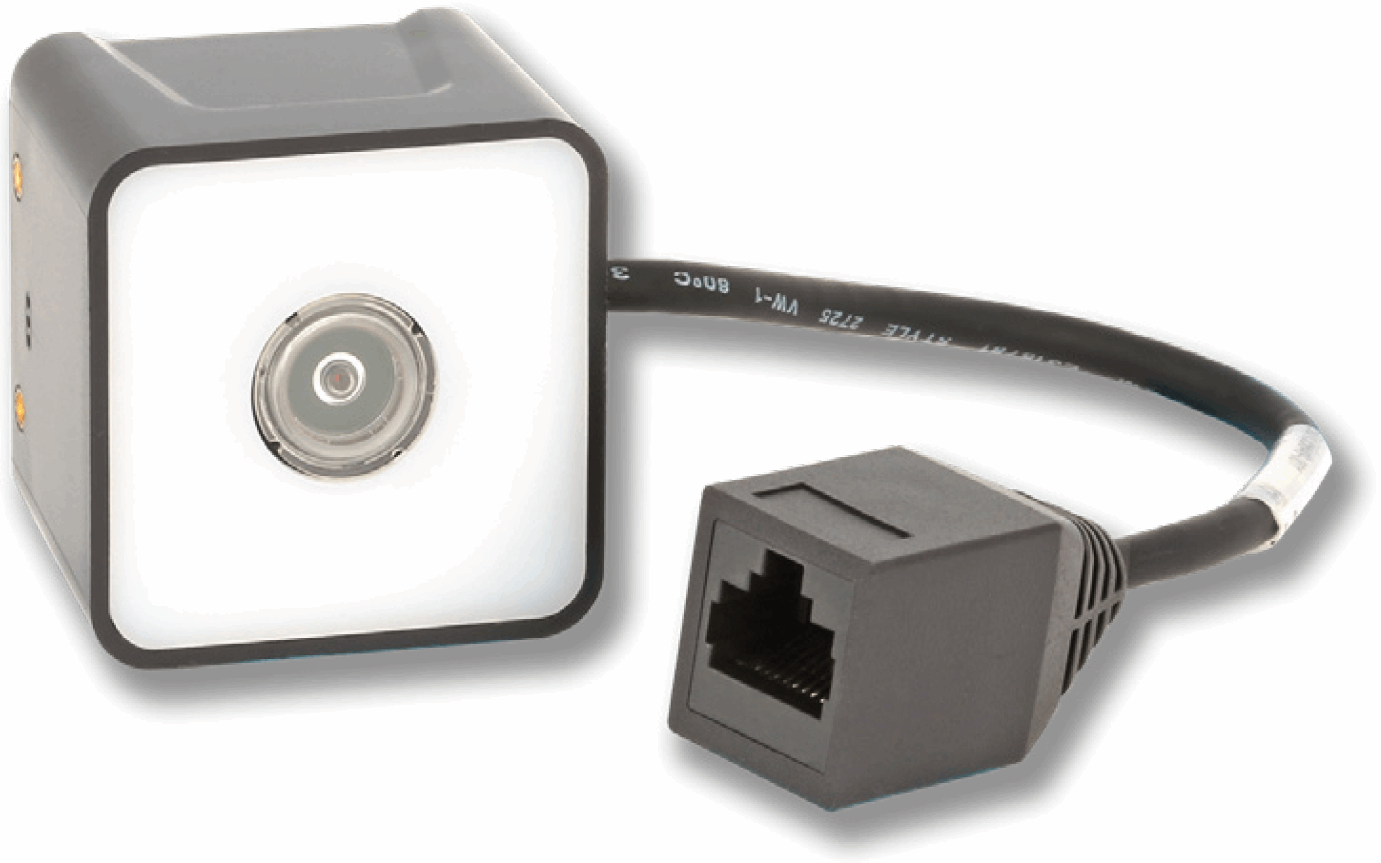

全新固定式二維影像式掃描器 HF521擁有卓越的性能,對所有一維,二維及郵政碼都具有超強的掃碼性能。簡潔小巧的外觀構造,靈活的固定方式能夠使其完美地融入到KIOSK中。HF521配有符合人體工學設計的外觀結構和暖白LED補光,對於高反光表面上的條碼,尤其是手機螢幕條碼具有強勁的解讀能力。並且HF521擁有超大的視場角度,更加方便用戶使用,是一款真正值得信賴的KIOSK專用的掃碼解決方案。
|
MECHANICAL (HF521) |
|
|
Dimension (L x W x H) |
41.7 mm x 41.7 mm x 32.5 mm |
|
Weight |
55.5 g |
|
Interface |
USB or RS-232 |
|
PERFORMANCE (HF511) |
|
|
Sensor |
CMOS, 640 x 480 pixels, Global shutter |
|
Motion Tolerance |
Up to 120 cm/s |
|
Field of View |
Horizontal: 83°, Vertical: 66.2° |
|
Scan Angles |
Tilt: 360°, Pitch: ±55°, Skew: ±65° |
|
Symbol Contrast |
35% minimum print contrast ratio |
|
Minimum Resolution |
1D: 3 mil Code 39 2D: 6.7 mil QR Code |
|
Symbologies |
|
|
Linear |
Codabar, Code 11, Code 128, Code 2 of 5, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation |
|
2D |
Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code |
|
Postal |
Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet |
|
ENVIRONMENTAL |
|
|
Operating Temperature |
-10°C to 50°C |
|
Storage Temperature |
-40°C to 70°C |
|
Humidity |
up to 95% relative humidity, non-condensing, at 50°C |
|
Drop |
2 falls onto cement floor from height of 1.5m |
|
Ambient Light |
0 lux to 100,000 lux (total darkness to bright sunlight) |
|
Sealing |
IP40 |
