產品特色
掃碼狀態指示
兩列可變色LED,在解碼過程中,提示用戶解碼成功
體積適中
可以方便嵌入到各種設備中
廣角掃描
超大的視場角度,可以更大範圍的輕鬆掃碼
卓越的解碼性能
快速解碼所有一維及二維條碼,尤其在高反光的手機屏幕上的條碼
豐富條碼資料庫
可支援全系列一維條碼,二維條碼
產品簡介

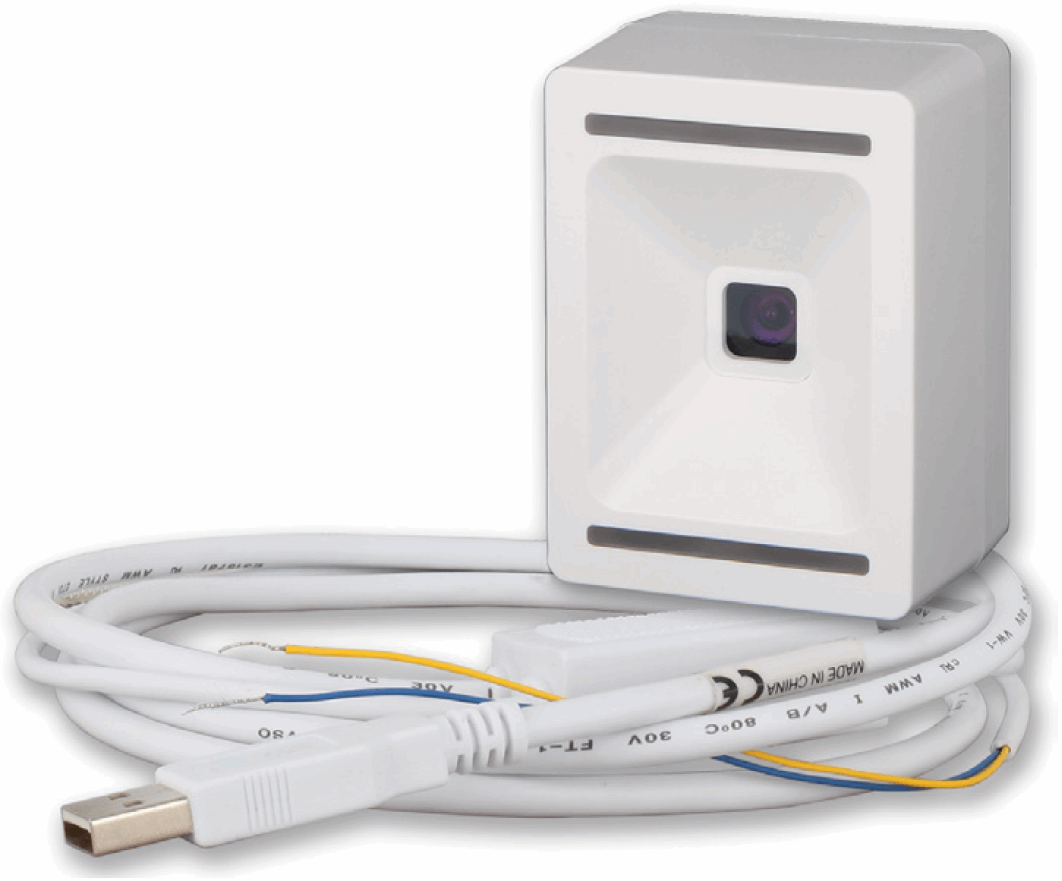

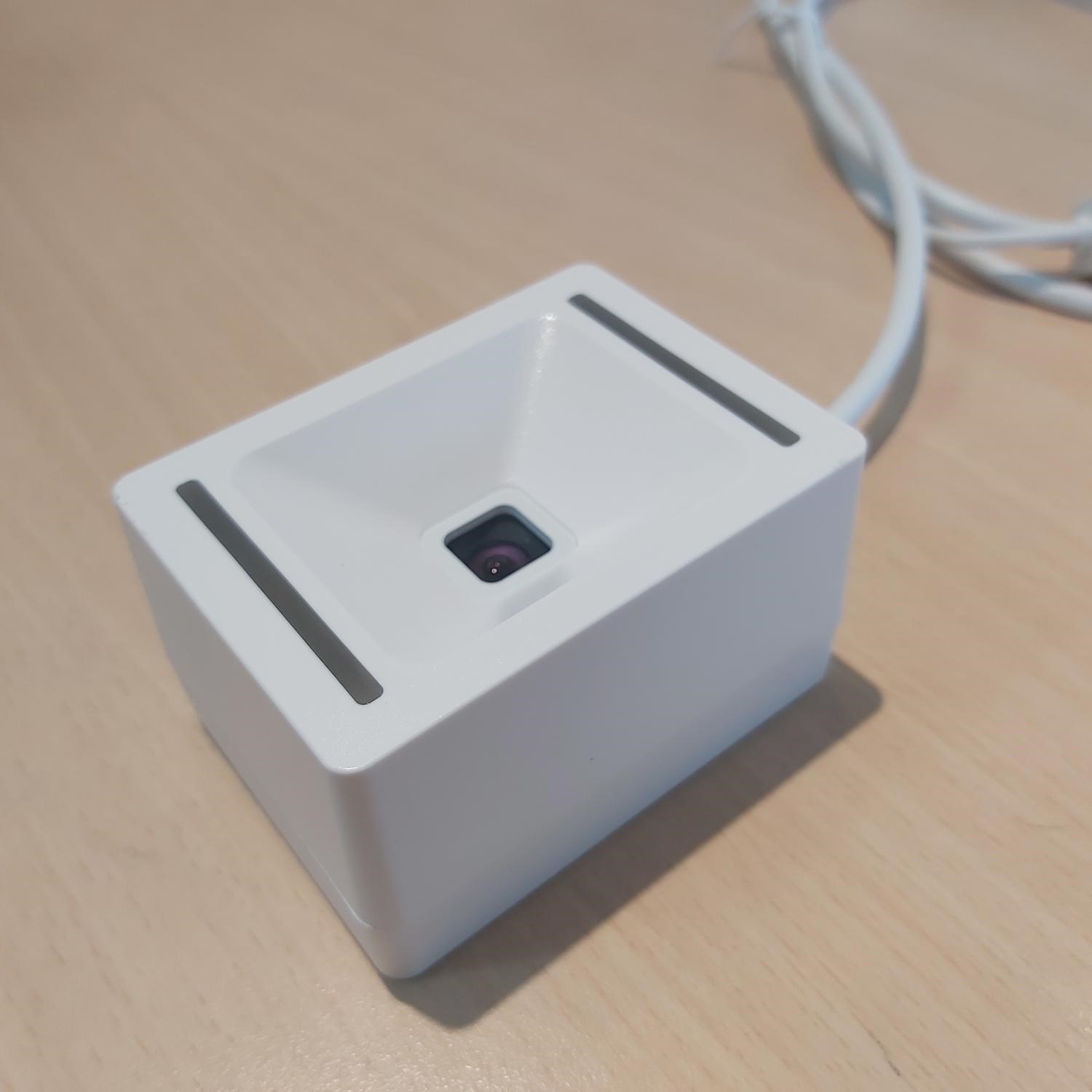

全新固定式二維影像式掃描器-HF561擁有卓越的性能,對所有一維,二維及郵政碼都具有超強的掃碼性能。純白色簡潔大方的外觀構造,靈活的固定方式能夠使其完美地融入到KIOSK中。HF561對於高反光表面上的條碼,尤其是手機螢幕條碼具有強勁的解讀能力。並且HF561擁有超大的視場角度,更加方便用戶使用,是一款真正值得信賴的KIOSK專用的掃碼解決方案。
|
MECHANICAL |
|
|
Dimension (L x W x H) |
76 mm x 56 mm x 43 mm |
|
Weight |
170 g |
|
Interface |
USB or RS-232 |
|
PERFORMANCE |
|
|
Sensor |
CMOS, 844 x 640 pixels, Global shutter |
|
Optics |
SR(standard range) / ER(extended range) |
|
Frame Rate |
30 fps |
|
Motion Tolerance |
Up to 300 cm/s |
|
Field of View |
SR: Horizontal: 75°, Vertical: 60.5° ER: Horizontal: 31°, Vertical: 23.5° |
|
Scan Angles |
Tilt: 360°, Pitch: ±45°, Skew: ±65° |
|
Symbol Contrast |
30% minimum print contrast ratio |
|
Minimum Resolution |
SR: 1D: 7.5 mil, 2D: 10 mil ER: 1D: 13mil, 2D: 20 mil |
|
Symbologies |
|
|
Linear |
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar, UPC-A, UPC-E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation |
|
2D |
Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) Code |
|
Postal |
Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet |
|
ENVIRONMENTAL |
|
|
Operating Temperature |
-20°C to 60°C |
|
Storage Temperature |
-40°C to 70°C |
|
Humidity |
up to 95% relative humidity, non-condensing, at 60°C |
|
Drop |
2 falls onto cement floor from height of 1.5m |
|
Vibration |
3 shaft, 2 hours per shaft: 1.52 mm |
|
Ambient Light |
0 lux to 100,000 lux (total darkness to bright sunlight) |
|
Sealing |
IP54 |
