產品特色
優異的動態掃描
Motion Tolerance最高可達6公尺/秒
超高速FPS
Frames Per Second提升至120FPS,讀取速度提高30%
可支援多種介面
可支援USB( 5V )介面或 TTL232 ( 3.3V ) Serial介面(2擇1),使用者可依需求做選擇
豐富條碼資料庫
可支援一維條碼,二維條碼,OCR條碼
百萬畫素鏡頭
對於小條碼/破損條碼有更佳的掃描效能
產品簡介

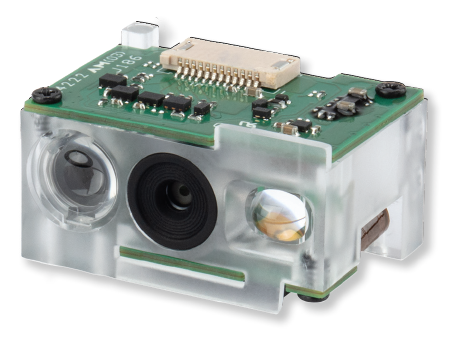

N5780為功能齊全的二維條碼掃描引擎,無需額外加裝解碼板,也無需另外撰寫程式。小尺寸設計可以很輕鬆的安裝在任何小體積的行動裝置上。N5780具有齊全條碼資料庫,可支援所有一維條碼,二維條碼及OCR條碼,強大的演算法可輕鬆讀取破損的條碼,甚至是手機螢幕上的票劵條碼,包括兌換券.會員卡以及手機支付系統。
|
MECHANICAL |
|
|
Dimesion (L x W x H) |
21.15 mm x 14.6 mm x 11.5 mm |
|
Weight |
3.7 g |
|
Interface |
12-pin ZIF connector with both TTL serial and USB configurations |
|
PERFORMANCE |
|
|
Sensor |
CMOS, 1280 x 800 pixels, Global shutter |
|
Illumination |
White LED |
|
Aiming |
Green Cross LED |
|
Frame Rate |
Upto 120 fps |
|
Field of View |
Horizontal: 47° |
|
Scan Angles |
Tilt: 360° , Pitch: ±60° , Skew: ±60° |
|
Symbol Contrast |
20% minimum print contrast ratio |
|
Symbologies |
|
|
Linear |
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar, UPC-A, UPC-E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation |
|
2D |
Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) Code |
|
Postal |
Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet |
|
OCR |
OCR-A, OCR-B, MICR E-13B |
|
ENVIRONMENTAL |
|
|
Operating Temerature |
-30°C to 60°C |
|
Storage Temperature |
-40°C to 70°C |
|
Humidity |
up to 95% relative humidity, non-condensing, at 60°C |
|
Shock |
3500 G for 0.4 ms at 23°C |
|
Vibration |
3 axes, 1 hour per axis: 2.54 cm |
|
Ambient Light |
0 lux to 100,000 lux (total darkness to bright sunlight) |
|
MTBF |
1,550,000 hours |
