產品特色
袖珍的尺寸
超小型化的設計,完全符合手持裝置日趨薄型化的需求
搭載Adaptus 7.0技術
條碼辨識更快速,準確度再提升,即便是難以辨識的條碼或者甚至是手機屏幕,都可以正確辨讀
絕佳的補光對策
白光LED提供最佳的補光策略,可輕鬆讀取所有條碼
擁有百萬畫素
CMOS Sensor 再升級,最小可讀3mil條碼
動態判讀能力再提升
動態容許掃瞄最高可支援 6 m/s,
豐富條碼資料庫
可支援全系列一維條碼.二維條碼,,甚至也支援特殊 OCR 條碼
產品簡介

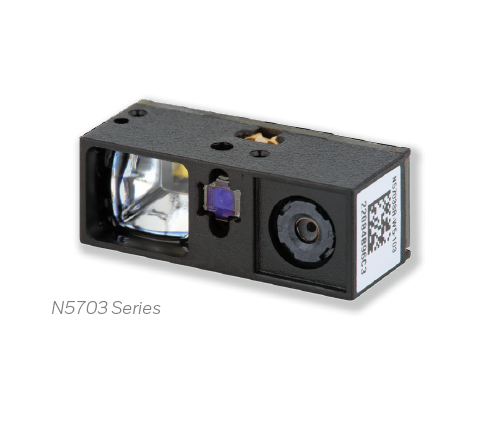

N5703系列為超小型區域成像掃描引擎,其搭載Honeywell Adaptus 7.0技術,在條碼辨讀的速度及準確度上,更是大大提升。N5703系列內建高性能的感應器,搭配上白色LED補光,增強了動態容差值,以往難以辨識的條碼都可以快速又正確的讀取。N5703系列支援MIPI介面,可搭配Host Decoder, 減少解碼版所需要的空間。N5703系列可廣泛應用在平板及穿戴裝置等小體積產品上。
|
MECHANICAL |
|
|
Dimesion (H x W x D) |
8.1 mm x 22 mm x 10.8 mm |
|
Weight |
2.1 g |
|
Interface |
MIPI |
|
PERFORMANCE |
|
|
Sensor |
CMOS, 1280 x 800 pixels, Global shutter |
|
Illumination |
White LED |
|
Aiming |
650 nm high-visibility red laser |
|
Frame Rate |
60 fps |
|
Motion Tolerance |
Up to 600 cm/s |
|
Field of View |
Horizontal: 44° |
|
Scan Angles |
Tilt: 360°, Pitch: ±55°, Skew: ±70° |
|
Symbol Contrast |
20% minimum print contrast ratio |
|
Symbologies |
|
|
Linear |
Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 DataBar, UPC-A, UPC-E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation |
|
2D |
Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin) Code |
|
Postal |
Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet |
|
OCR |
OCR-A, OCR-B, MICR E-13B |
|
ENVIRONMENTAL |
|
|
Operating Temerature |
-30°C to 60°C |
|
Storage Temperature |
-40°C to 70°C |
|
Humidity |
up to 95% relative humidity, non-condensing, at 60°C |
|
Shock |
3500 G for 0.4 ms at 23°C |
|
Vibration |
3 axes, 1 hour per axis: 2.54 cm |
|
Ambient Light |
0 lux to 100,000 lux (total darkness to bright sunlight) |
|
MTBF |
327,786 hours |
